10  Decision Trees

Author

Pulong Ma

10.1 Learning goals

By the end of this section, you should be able to:

  • Explain the basic idea of decision trees
  • Understand the idea of classification tree.
  • Define impurity measures (misclassification error, Gini index, cross-entropy).
  • Fit and interpret a classification tree using R package rpart.
  • Visualize trees and decision boundaries.
  • Explain overfitting and why pruning / cross-validation are needed.

10.2 Introduction

Supervised learning
  • Supervised learning: We train the model using a dataset where we already know the correct answers (the “labels”).
  • Training data: A datset that is used to train (or fit) the model (in order to estimate unknown model parameters).
  • Testing data: A dataset that is not used for training a model but used to evaluate the accuracy of the model.
Decision trees
  • Decision trees are essentially flowcharts of decisions that help us predict an outcome.
  • Decision trees are supervised learning models used for:
    • Classification (predicting categories)
    • Regression (predicting numeric outcomes)
  • The term decision tree refers to the general structure
    • A classification tree is a specific type of decision trees where the target variable is a categorical variable.
    • A regression tree is another specific type of decision trees where the target variable is a numerical variable.
  • We often use classification and regression trees with the acronym CART to refer to the two types of statistical models/algorithms based on decision trees.
  • In this course, we only focus on classification trees.

10.3 Classification Tree

10.3.1 Basic Idea

Basic idea of a CART algorithm
  • Initialization: All observations are in one node at the top of the tree.
  • Recursion for each node:
    • Pick a binary decision rule based on variables.
    • Split a node into two child nodes based on the selected decision rule
  • Recursion stops when no further gain is achieved, or some pre-set stopping rules are met.
Tree terminologies
  • Root node: The starting point; represents the entire dataset.
  • Internal node: A node that splits the data based on a feature test (a decision).
  • Branch/edge: The outcome of the test (e.g., ‘Yes’ or ‘No’).
  • Leaf node (terminal node): A node that has no descendants (child nodes).

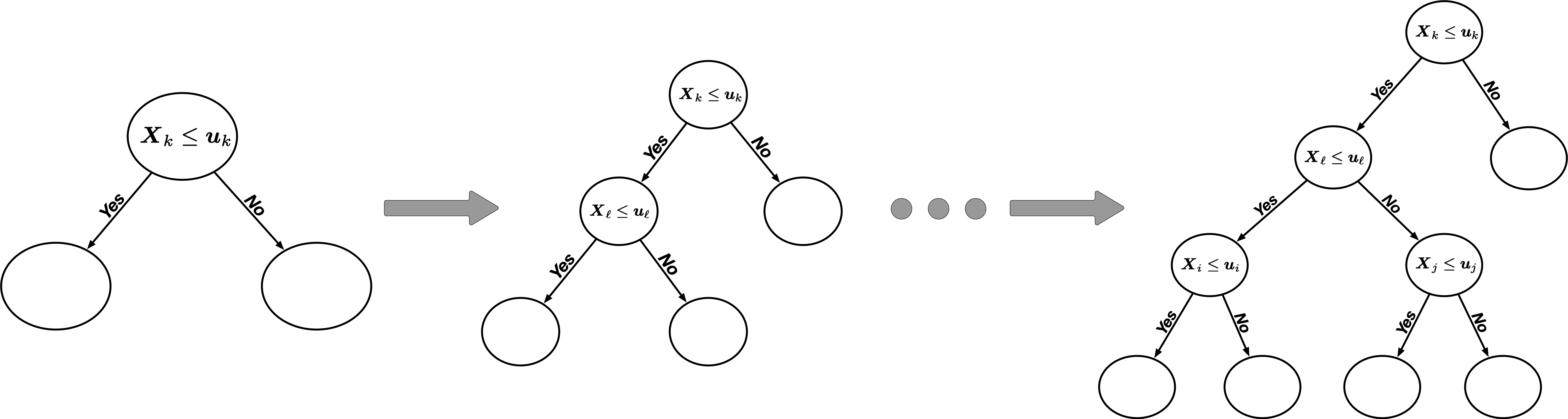

Illustration of a CART algorithm
Recursive binary splitting

Recursive binary splitting in decision trees is a top-down, greedy approach

  • Top-down:
    • start at the top of tree with all the data and split the data into subgroups as we move down the tree
    • In contrast to bottom-up: each case starts as its own region and we merge regions together.
  • Greedy:
    • At each step of tree-building, the best split at this step is made.
    • It’s possible that another split may result in an overall better tree
  • We need to define the decision rule as the splitting criterion to split the node. In this course, we focus on the concept Gini index that is used in the original CART algorithm.
  • We also need to determine when the tree stops splitting.

10.3.2 Splitting Criterion

  • The CART algorithm determines the optimal split by searching for the cutoff (or split point) that yields the maximum reduction in impurity (or maximum information gain).
  • This is equivalent to finding the split that results in the lowest weighted average impurity of the resulting child nodes.
Definition of Gini index

Definition: The Gini index G for a given node m containing observations from K classes is defined as G_m:= \sum_{i=1}^K \sum_{j\neq i} p_i p_j = 1 - \sum_{i=1}^K p_i^2

  • K is the total number of distinct classes (categories or labels) in the target variable.
  • p_i is the proportion of observations in node m that belong to class i with p_1 + p_2 + \ldots + p_K = 1.
  • The maximum value of the Gini Index occurs at p_i = 1/K for all i=1,2, \ldots, K.
  • The minimum value of the Gini Index is 0.
  • G_m\approx 0: The node is approximately perfectly pure. All observations in the node nearly belong to the same class.
  • G_m > .5: The node is viewed as highly impure (mixed). Observations are distributed roughly equally across multiple classes.
  • Gini index quantifies the purity (or homogeneity) of a node in a decision tree.
  • The Gini index, also called Gini impurity, is a measure in the construction of decision trees to evaluate how often a randomly selected element from a data set would be incorrectly labelled if it were labeled according to the distribution of the labels in the data set.
Determination of Split
  • For any potential split point c on a variable X, we divide the data into the left-child node and the right child node.
  • The split point c is chosen to minimize the weighted Gini index
  • For each continuous variable x\in [c_0, c_d],
    • we divide the range of variable into d intervals of width w specified by c_0, c_0 + w, c_0 + 2w, \ldots, c_d;
    • we then choose the cutoff (or split point) c_i that maximizes the impurity of the child nodes.
  • For ordinal variables, we examine each possible cutoff.
  • For nominal variables, we put some categories in the left child and the others in the right child.

10.3.3 Working Example with the Titanic Data

Working Example with the iris Data

The Titanic dataset contains information about the passengers aboard the RMS Titanic, which sank after striking an iceberg on April 15, 1912, during its maiden voyage from Southampton (UK) to New York City. Out of 2,224 passengers and crew, more than 1,500 people died, making it one of the deadliest peacetime maritime disasters.

We will use the ptitanic dataset from the rpart.plot package with 1046 observations on 6 variables

  • pclass: passenger class, unordered factor: 1st 2nd 3rd
  • survived: died or survived
  • sex: male or female
  • age: in years
  • sibsp: number of siblings or spouses aboard
  • parch: number of parents or children aboard
  • Goal: We want to predict survived based on the other 5 variables.
library(rpart)
library(rpart.plot)

data(ptitanic)
df = ptitanic
head(df)
df$age = as.numeric(ptitanic$age)
df$sibsp = as.integer(ptitanic$sibsp)
df$parch = as.integer(ptitanic$parch)

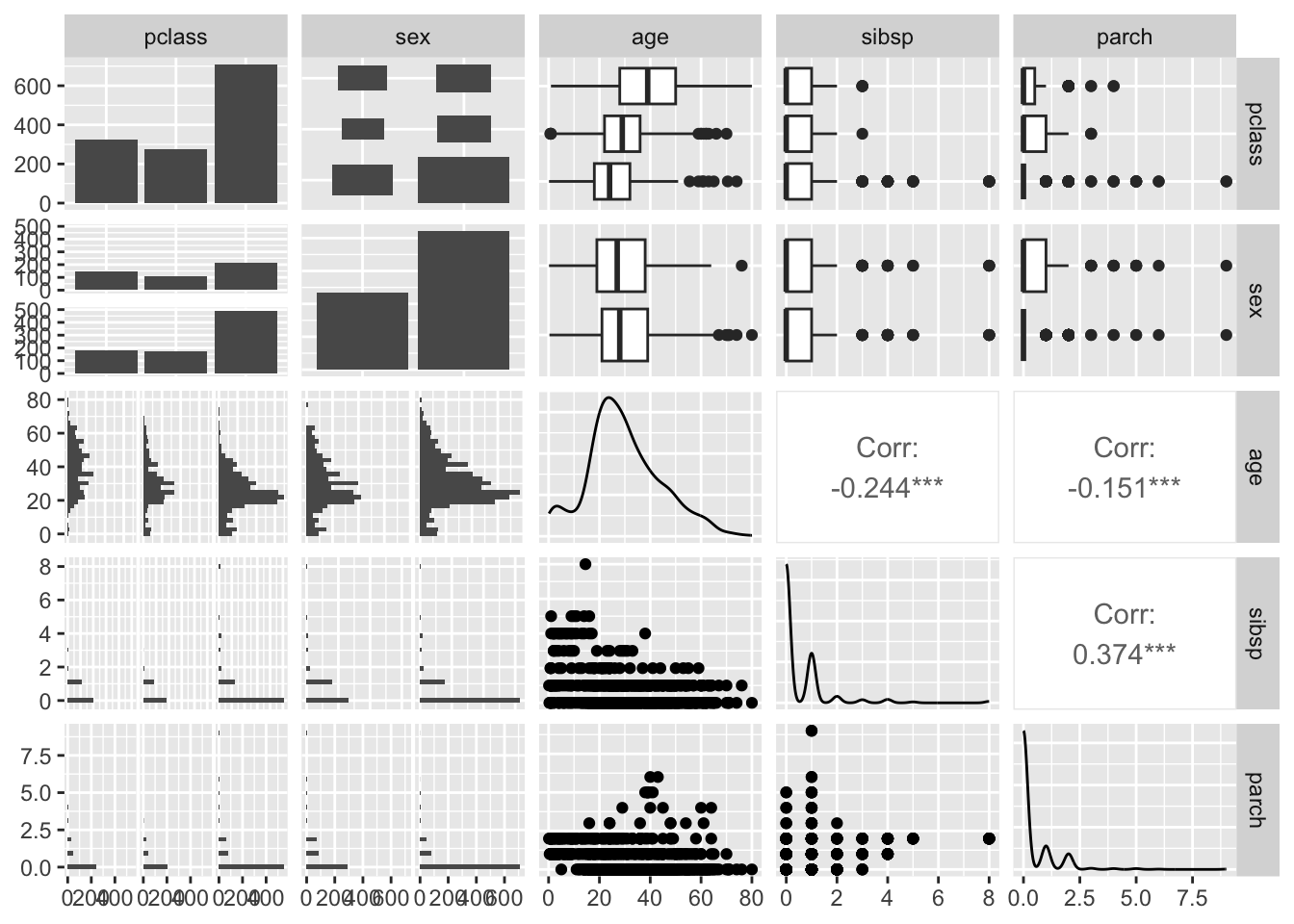

library(GGally)
library(dplyr)
df %>%
  select(-survived) %>%
  ggpairs()

set.seed(4750)
n = nrow(df)
frac = 0.7 # 70% for training
train_idx = sample(seq_len(n), size = floor(frac * n))

df_train = df[train_idx, ]
df_test = df[-train_idx, ]

dim(df_train)
[1] 916   6
dim(df_test)
[1] 393   6
fit = rpart(survived ~ ., data = df_train)
print(fit)
n= 916

node), split, n, loss, yval, (yprob)
      * denotes terminal node

 1) root 916 352 died (0.61572052 0.38427948)
   2) sex=male 590 117 died (0.80169492 0.19830508)
     4) age>=13.5 545  97 died (0.82201835 0.17798165) *
     5) age< 13.5 45  20 died (0.55555556 0.44444444)
      10) sibsp>=2.5 21   1 died (0.95238095 0.04761905) *
      11) sibsp< 2.5 24   5 survived (0.20833333 0.79166667) *
   3) sex=female 326  91 survived (0.27914110 0.72085890)
     6) pclass=3rd 149  70 died (0.53020134 0.46979866)
      12) sibsp>=2.5 14   1 died (0.92857143 0.07142857) *
      13) sibsp< 2.5 135  66 survived (0.48888889 0.51111111)
        26) parch>=2.5 9   1 died (0.88888889 0.11111111) *
        27) parch< 2.5 126  58 survived (0.46031746 0.53968254) *
     7) pclass=1st,2nd 177  12 survived (0.06779661 0.93220339) *

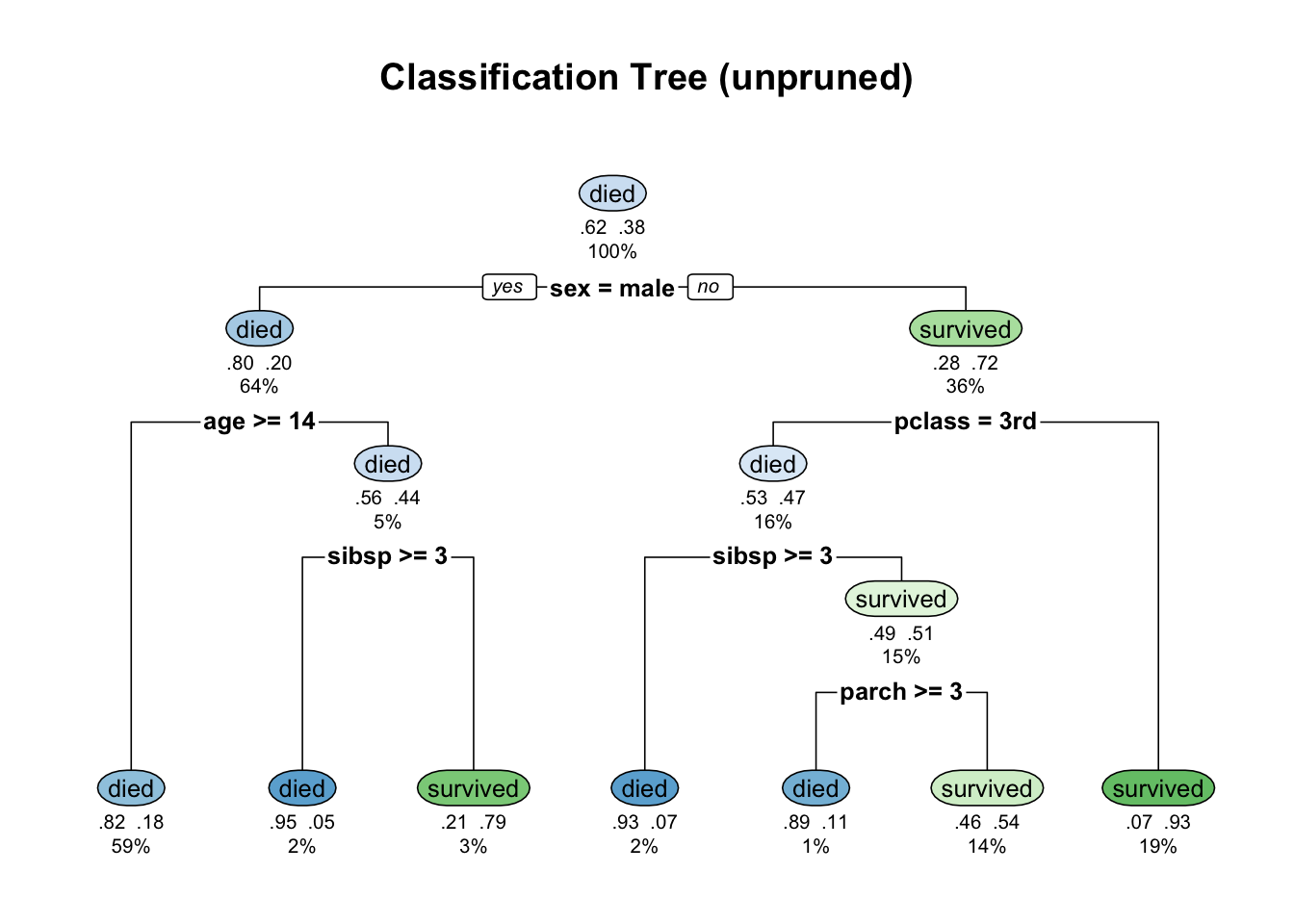

g = rpart.plot(fit,
  main = "Classification Tree (unpruned)"
)

Classification tree.

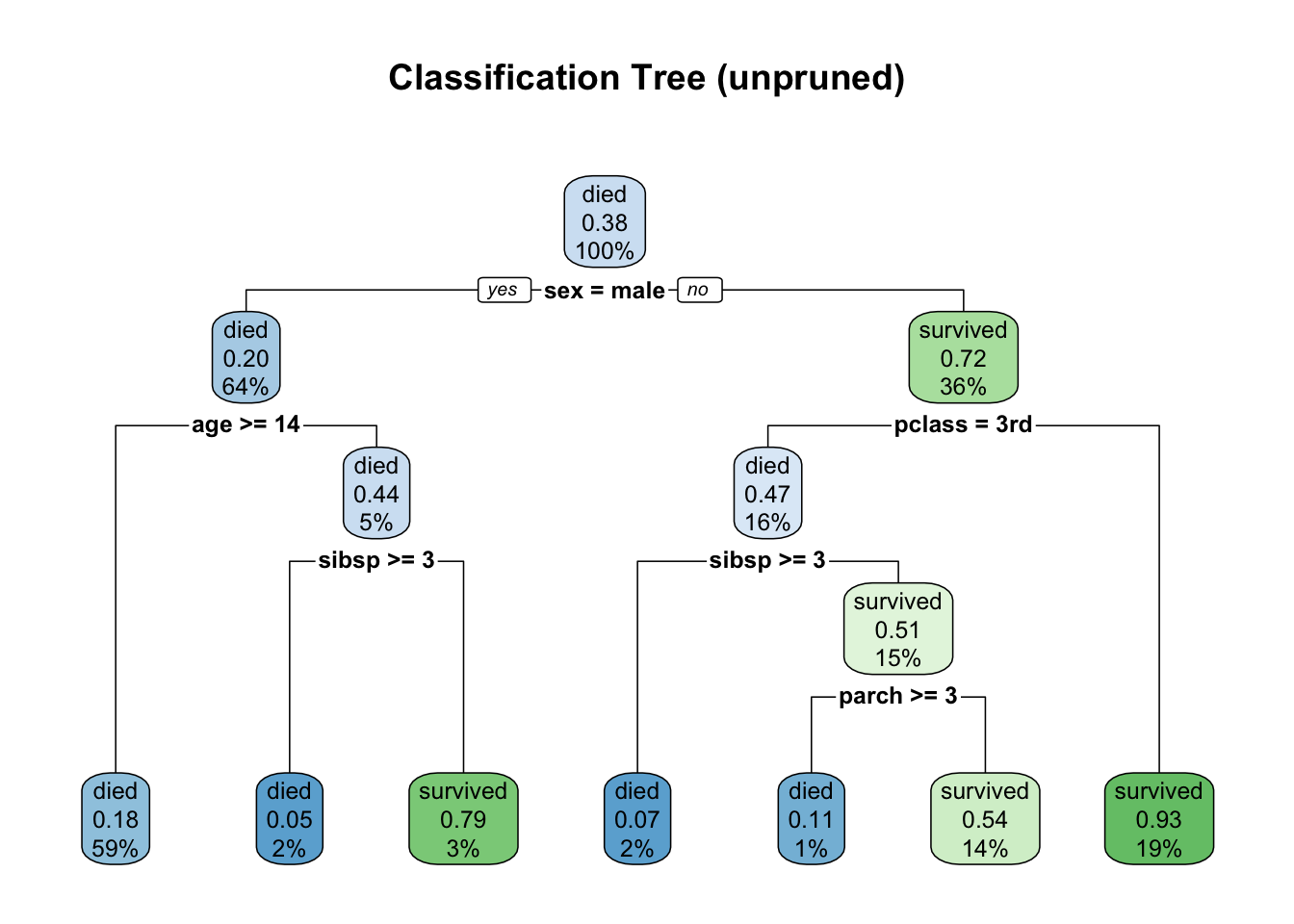

g = rpart.plot(
  fit,
  type = 2,        # split labels on branches
  extra = 104,     # show class, prob, and percentage of obs.
  under = TRUE,    # show text information under the box
  main = "Classification Tree (unpruned)"
)

Classification tree
  • How to read a node?
    • Each node shows the predicted class (died or survived), predicted probability of survival, and the percentage of observations in the node
    • For the root node, it shows the percentage of observations that corresponds to survived (here it is .38) in the first figure above. In the second figure, it shows two probabilities (0.62, 0.38), corresponding to two classes died and survived.
    • In the first figure (with default setting in rpart.plot), the probability shown in each node always refers to the survived observations.
    • .82 .18 (lowest left node): estimated probabilities for each class: died or survived
    • 59% (lowest left node): percentage of training observations in that node
  • At each node, the algorithm searched over all predictors and possible cut points to find the split that maximally reduces node impurity (i.e., inhomogeneity). We will talk about this concept in what follows.
  • Root split (split at tree depth 0): sex = male
    • left child: all observations with sex = male
    • right child: all observations with sex = female
  • A split at tree depth 1 (on the left child): age >= 14
    • This separates remaining observations further into two classes (died or survived) with the constrain that its left child corresponds to age >= 14 and its right child corresponds to age < 14.

10.3.4 Pruning The Tree

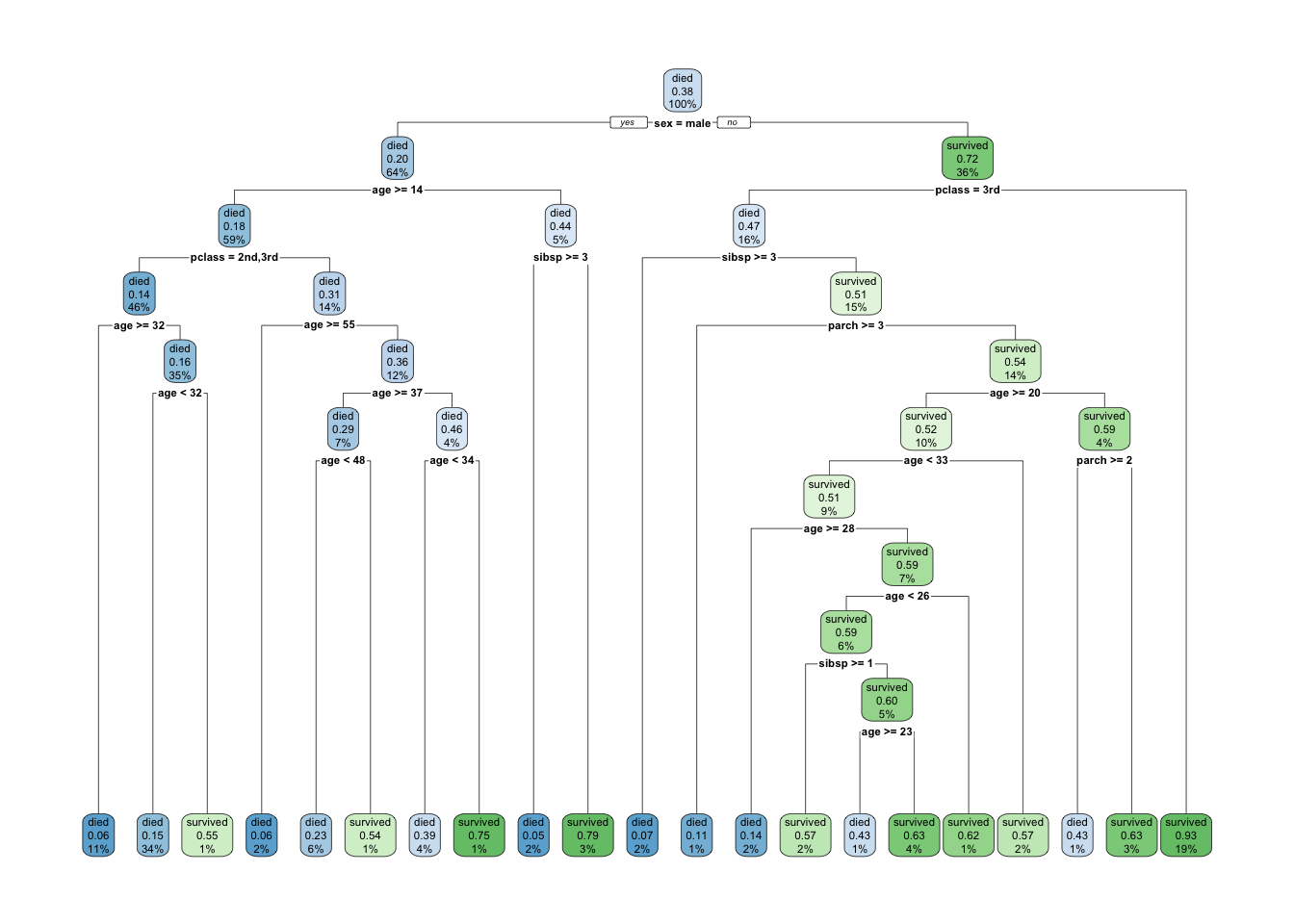

fit1 = rpart(survived ~ ., data = df_train, cp=0.00001)
rpart.plot(fit1)

  • As we can see, the fitted classification tree has a deeper tree structure. The question then becomes whether this deeper tree is necessary (brings benefits).
  • Deep trees (those with large number of tree nodes) can overfit. To address this issue, rpart uses cost-complexity pruning controlled by cp (complexity parameter).
  • A statistical model or machine learning model overfits the data if the model’s error on training data is very low (often near zero) and simultaneously the model’s error on testing data is much higher than the training error. Overfitting is often implied by high training accuracy and low testing accuracy.
  • Overfitting is often a characteristics of overly complex models. In decision trees, this means the tree with too many deep branches.
  • Underfitting is the opposite of overfitting.
  • In general, we want to build a statistical model/machine learning model that balance model complexity and testing accuracy.
  • This is achieved by cross-validation (CV):
    • CV is used during training to estimate how well the model will generalize to unseen data (testing data).
    • CV divides the data into training data and testing data.

Let’s first look at the fitting outputs from fit1, which gives the complexity parameter (CP) and cross-validation error.

printcp(fit1)

Classification tree:
rpart(formula = survived ~ ., data = df_train, cp = 1e-05)

Variables actually used in tree construction:
[1] age    parch  pclass sex    sibsp

Root node error: 352/916 = 0.38428

n= 916

          CP nsplit rel error  xerror     xstd
1 0.40909091      0   1.00000 1.00000 0.041824
2 0.02556818      1   0.59091 0.59091 0.036021
3 0.01988636      2   0.56534 0.57670 0.035711
4 0.01420455      4   0.52557 0.54830 0.035064
5 0.00946970      6   0.49716 0.54830 0.035064
6 0.00284091      9   0.46875 0.52557 0.034519
7 0.00142045     15   0.45170 0.55682 0.035262
8 0.00094697     17   0.44886 0.56818 0.035521
9 0.00001000     20   0.44602 0.56818 0.035521

The table includes:

  • nsplit: number of splits
  • rel error: training error (relative to root node)
  • xerror: cross-validated error
  • xstd: standard error of xerror

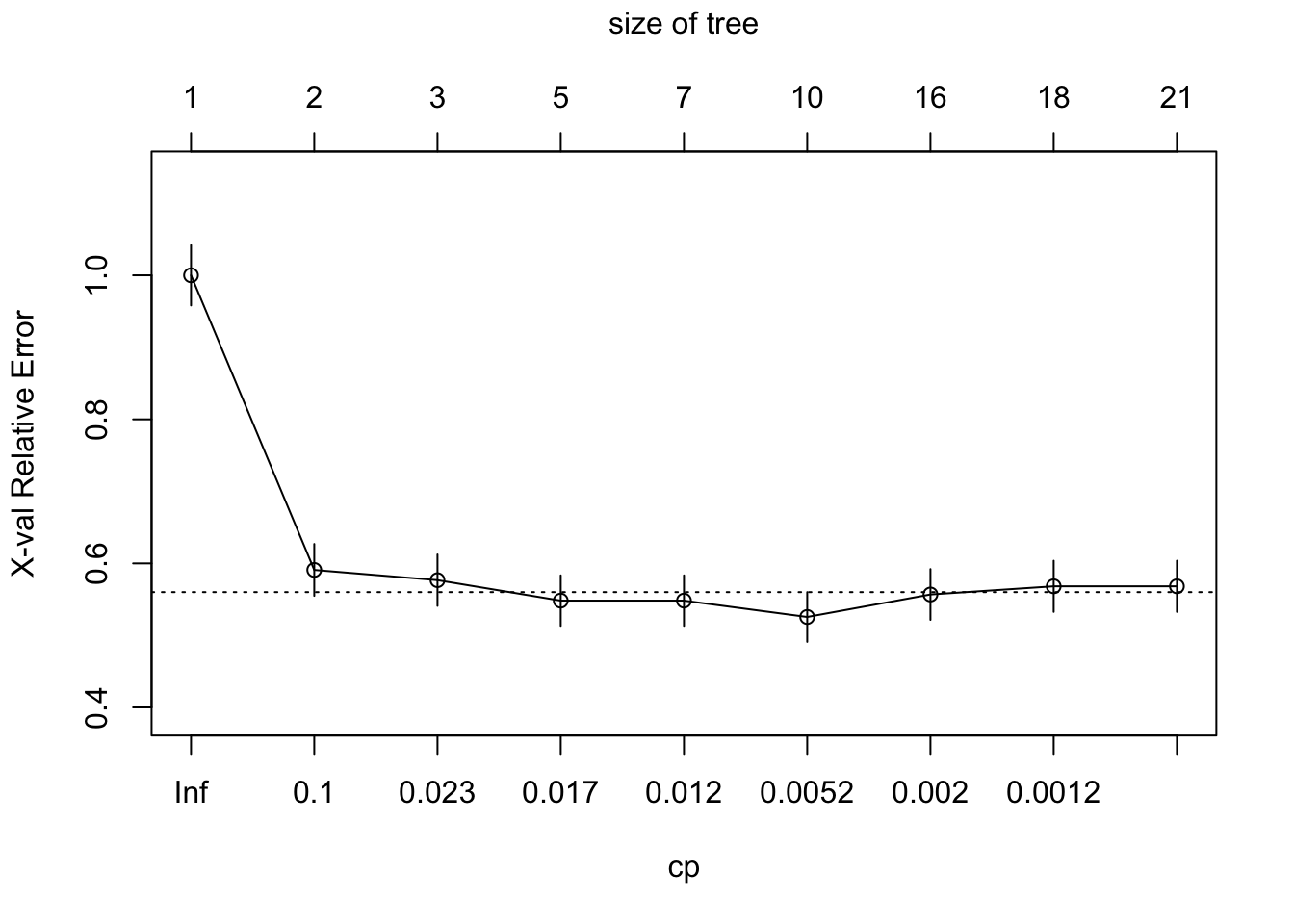

plotcp(fit1)

  • Note: a horizontal line in the figure above is drawn 1 standard error above the minimum of the curve.

To select the best CP, we could use

best_cp = fit1$cptable[which.min(fit1$cptable[, "xerror"]), "CP"]
best_cp
[1] 0.002840909

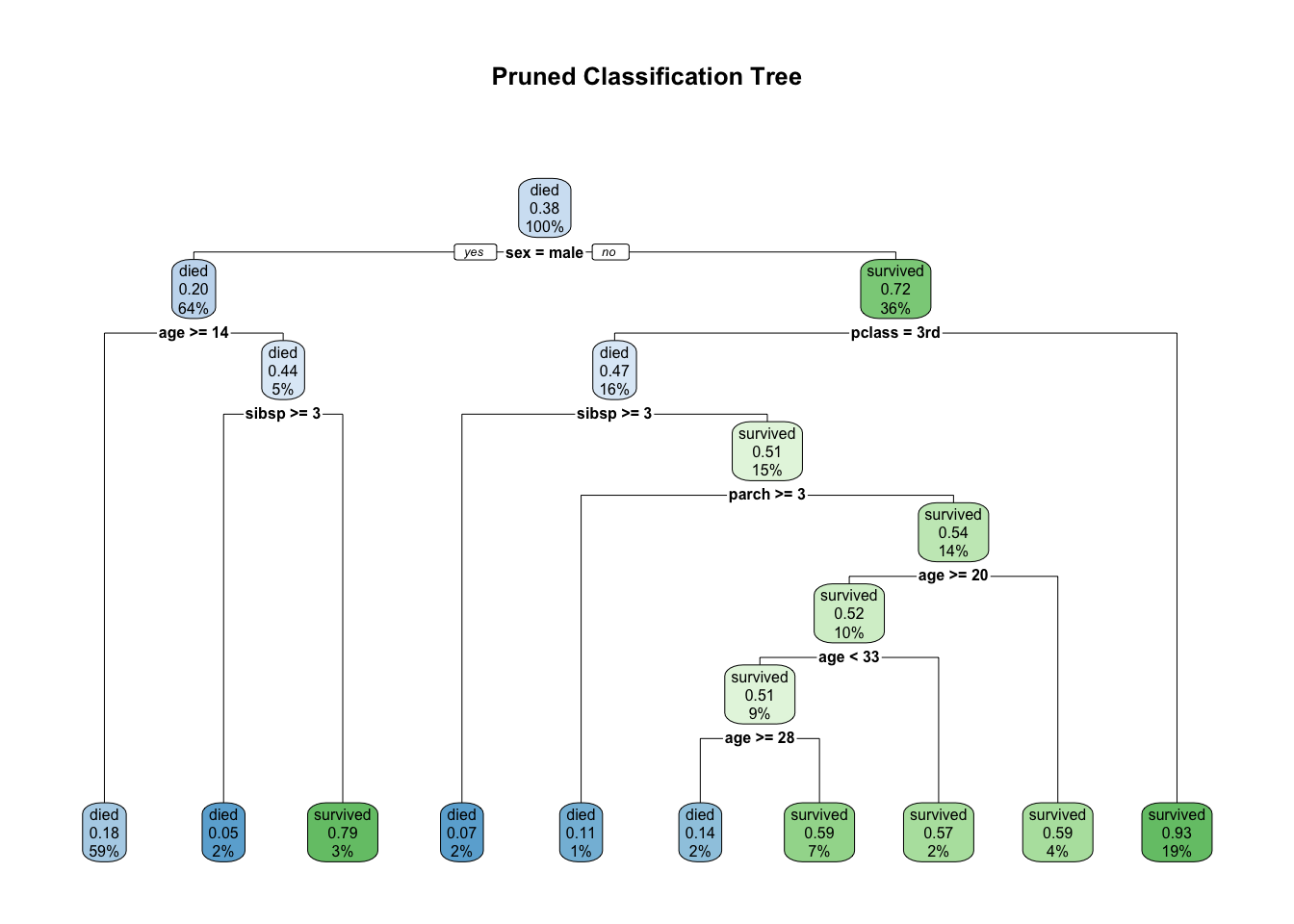

fit1_pruned = prune(fit1, cp = best_cp)

rpart.plot(
  fit1_pruned,
  main = "Pruned Classification Tree"
)

  • In general, there is a clear class boundaries due to sex=female, Pclass<3, and Age<14.
  • Compared to males, females have a higher survival rate. This makes sense because
    • Many women and children were evacuated first.
  • 1st and 2nd class passengers had much better survival chances
    • Proximity to lifeboats
    • Better access to upper decks
  • Children had higher survival rates
    • Often evacuated first with their families
Randomness in cross-validation
  • The problem with reducing the xerror is that the cross-validation (CV) error is a random quantity. This is because CV randomly divides the data in rpart.
  • There is no guarantee that if we were to fit the sequence of trees again using a different random seed that the same tree would minimize the cross-validation error.
  • A more robust alternative to minimum cross-validation error is to use the one standard deviation rule: choose the smallest tree whose cross-validation error is within one standard error of the minimum. Depending on how we define this there are two possible choices.
    • The first tree whose point estimate of the cross-validation error falls within the \pm 1 xstd of the minimum.
    • On the other hand, the standard error lower limit of the tree of size three is within +1 xstd of the minimum.

10.3.5 Model Evaluation

For classification problems, we could evaluate the performance the model by looking at classification errors, which are defined through a confusion matrix. A confusion matrix is a table that summarizes how well a classification model performs by comparing the model’s predicted classes with the actual (true) classes.

Confusion Matrix
  • A confusion matrix is a square table where:
    • Rows represent the true classes
    • Columns represent the predicted classes
  • Each cell shows the number of observations that fall into that true–predicted combination.
Example of Binary Confusion Matrix

Suppose a model predicts whether a passenger survived the Titanic disaster.

True Predicted Predicted: Survived Predicted: Died
True: Survived TP (True Positives) FN (False Negatives)
True: Died FP (False Positives) TN (True Negatives)
  • True Positive (TP): correctly predicted survived.
  • True Negative (TN): correctly predicted died.
  • False Positive (FP) (Type I error): predicted survived but actually died. (A “false alarm”)
  • False Negative (FN) (Type II error): predicted died but actually survived. (A “miss”)
  • The table above does not require strict ordering in columns or rows. One could switch the column Predicted: Survived and the column Predicted: Died but the meaning/interpretation should also be defined appropriately.

We first show the prediction results and confusion matrix based on training data.

pred_class_train = predict(fit1_pruned,
                           type="class"
                           )
conf_mat_train = table(Predicted=pred_class_train, True=df_train$survived)

conf_mat_train
          True
Predicted  died survived
  died      501      102
  survived   63      250

We can also get mis-classification errors using the following R code

prob.results = predict(fit1_pruned)
head(prob.results)
           died  survived
[1,] 0.06779661 0.9322034
[2,] 0.06779661 0.9322034
[3,] 0.82201835 0.1779817
[4,] 0.82201835 0.1779817
[5,] 0.40625000 0.5937500
[6,] 0.40625000 0.5937500

The confusion matrix can also be represented in terms of probabilities:

prop.table(table(Predicted=pred_class_train,
                 True=df_train$survived))
          True
Predicted        died   survived
  died     0.54694323 0.11135371
  survived 0.06877729 0.27292576
pred_class = predict(fit1_pruned, newdat=df_test, type="class")
conf_mat = table(Predicted=pred_class, True=df_test$survived)

conf_mat
          True
Predicted  died survived
  died      215       42
  survived   30      106

To show probabilities in confusion matrix, one can use the following code

prop.table(conf_mat)
          True
Predicted        died   survived
  died     0.54707379 0.10687023
  survived 0.07633588 0.26972010
Common Metrics Derived from the Confusion Matrix
  • Accuracy: The proportion of total predictions that were correct. \text{Accuracy} = \frac{TP + TN}{TP + TN + FP + FN}
  • Sensitivity / Recall (True Positive Rate): Out of all actual positives, how many did the model correctly identify? (Focuses on avoiding Misses) \text{Recall} = \frac{TP}{TP + FN}
  • Specificity (True Negative Rate): Out of all actual negatives, how many did the model correctly identify? (The opposite of Recall, focusing on the negative class) \text{Specificity} = \frac{TN}{TN + FP}
  • Precision: Out of all predicted positives, how many were actually correct? (Focuses on avoiding False Alarms) \text{Precision} = \frac{TP}{TP + FP}
accuracy <- mean(pred_class == df_test$survived)
accuracy
[1] 0.8167939
TP = conf_mat[1,1]
FP = conf_mat[2,1]
FN = conf_mat[1,2]
TN = conf_mat[2,2]

Accuracy = (TP + TN) / (TP + TN + FP + FN)
Recall = TP / (TP + FN)
Specificity = TN / (TN + FP)
Precision = TP / (TP + FP)

cat(" Accuracy: ", Accuracy, "\n",
    "Recall: ", Recall, "\n",
    "Specificity: ", Specificity, "\n",
    "Precision: ", Precision)
 Accuracy:  0.8167939
 Recall:  0.8365759
 Specificity:  0.7794118
 Precision:  0.877551

10.4 Exercise

Bronchopulmonary Dysplasia (BPD) Study

This example is from Biostatistics Casebook (pp. 104-119)

Training samples consist of all infants at the Stanford Medical Center between 1962 and 1973 who were diagnosed with respiratory distress syndrome (RDS) and received ventilatory assistance for at least 24 hours (except one infant with incomplete records). Most of these babies were born prematurely and had underdeveloped lungs. Some breathing assistance involving elevated levels of oxygen was needed to keep the babies alive. Bronchiopulmonary dysplasia (BPD) is deterioration of lung tissue (scarring) in infants exposed to a high level of oxygen. A panel of physicians reviewed each case to determine if BPD was present.

Infants who did not survive for at least 72 hours were excluded from the analysis because there was not enough time for BPD to develop. One additional infant was excluded due to incomplete records. This reduced the sample from 299 to 248 babies, including 78 with BPD and 170 without BPD. The dataset is available in the file bpd.csv.

General background variables:

  • Sex (0=female, 1=male)
  • YOB: year of birth (coded from 62 to 73)
  • APGAR: one minute APGAR score (0 to 10 with 10 as the most healthy)
  • GEST: gestational age (weeks × 10)
  • BWT: birth weight (grams)
  • AGSYM: age at onset of RDS (hours × 10)
  • RDS: severity of initial X-ray for RDS (0 to 5=most severe)
  • AGVEN: Age at onset of ventilation (hours)
  • VENTL: total hours on the ventilator
  • LOWO2: hours of exposure to (21-39%) levels of oxygen
  • MEDO2: hours of exposure to (40-79%) levels of oxygen
  • HIO2: hours of exposure to (80-100%) levels of oxygen
  • INTUB: hours of endotracheal intubation
  • Response variable: BPD (coded 1=yes, 2=no)

The goal is to perform classification using the classification tree method.

First convert categorical variables like sex and rds to factors. There is no need to convert categorical variables into zero-one variables, because it would not change the tree that is produced. Read the data into a data frame and create factors.

View Solution
bpdr = read.csv("bpd.csv", header=T)

bpdr$sex = as.factor(bpdr$sex)
bpdr$rds = as.ordered(bpdr$rds)

head(bpdr)

Create a factor to distinguish the two populations with labels “BPD” and “No BPD”.

View Solution
bpdr$y[bpdr$bpd==1] = 'BPD'
bpdr$y[bpdr$bpd==2] = 'No BPD'
bpdr$y = as.factor(bpdr$y)

Set a seed for starting a random number generator to generate random numbers used in crossvalidations to prune trees and estimate misclassification probabilities.

View Solution
set.seed(4750)

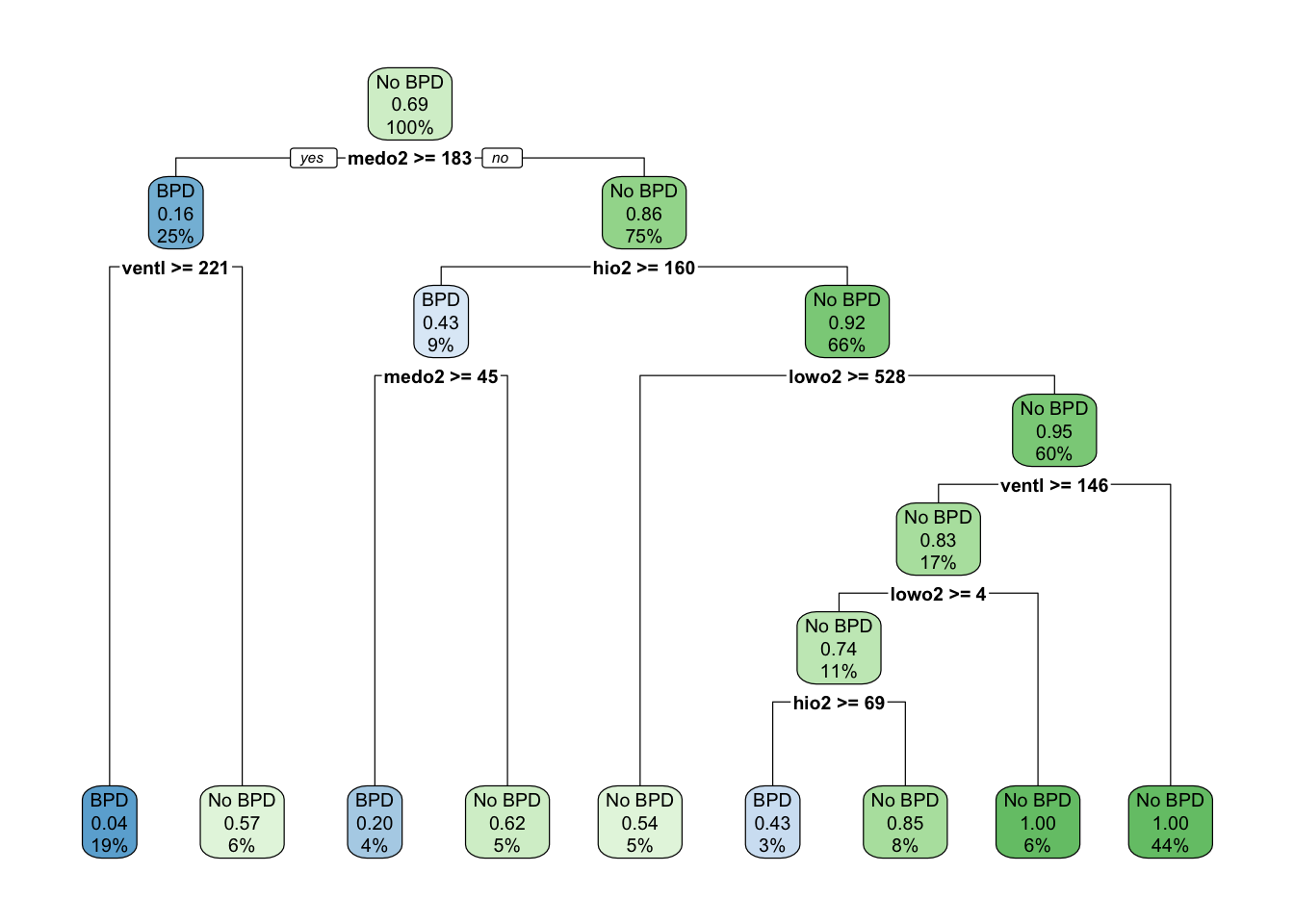

bpd.rp = rpart(y ~ sex+yob+gest+bwt+agsym+agven+intub+
                 ventl+lowo2+medo2+hio2+rds,
               data=bpdr, cp=0.0001)

summary(bpd.rp)
Call:
rpart(formula = y ~ sex + yob + gest + bwt + agsym + agven +
    intub + ventl + lowo2 + medo2 + hio2 + rds, data = bpdr,
    cp = 1e-04)
  n= 248

           CP nsplit rel error    xerror       xstd
1 0.538461538      0 1.0000000 1.0000000 0.09374569
2 0.038461538      1 0.4615385 0.6666667 0.08218816
3 0.025641026      3 0.3846154 0.5256410 0.07499920
4 0.003205128      4 0.3589744 0.5128205 0.07425765
5 0.000100000      8 0.3461538 0.5128205 0.07425765

Variable importance
medo2 intub ventl lowo2  hio2 agven   yob
   31    19    19    13    10     6     1

Node number 1: 248 observations,    complexity param=0.5384615
  predicted class=No BPD  expected loss=0.3145161  P(node) =1
    class counts:    78   170
   probabilities: 0.315 0.685
  left son=2 (62 obs) right son=3 (186 obs)
  Primary splits:
      medo2 < 183    to the right, improve=45.43011, (0 missing)
      ventl < 220.5  to the right, improve=43.28307, (1 missing)
      intub < 271    to the right, improve=39.85744, (0 missing)
      lowo2 < 437.5  to the right, improve=29.52134, (0 missing)
      hio2  < 153    to the right, improve=17.09879, (0 missing)
  Surrogate splits:
      intub < 286.5  to the right, agree=0.871, adj=0.484, (0 split)
      ventl < 301.5  to the right, agree=0.863, adj=0.452, (0 split)
      lowo2 < 429    to the right, agree=0.831, adj=0.323, (0 split)
      agven < 64.5   to the right, agree=0.786, adj=0.145, (0 split)
      hio2  < 305    to the right, agree=0.774, adj=0.097, (0 split)

Node number 2: 62 observations,    complexity param=0.02564103
  predicted class=BPD     expected loss=0.1612903  P(node) =0.25
    class counts:    52    10
   probabilities: 0.839 0.161
  left son=4 (48 obs) right son=5 (14 obs)
  Primary splits:
      ventl < 220.5  to the right, improve=6.034381, (1 missing)
      intub < 221.5  to the right, improve=4.680002, (0 missing)
      hio2  < 45.5   to the right, improve=4.466501, (0 missing)
      medo2 < 443.5  to the right, improve=4.181601, (0 missing)
      lowo2 < 434    to the right, improve=1.743506, (0 missing)
  Surrogate splits:
      intub < 221.5  to the right, agree=0.984, adj=0.929, (1 split)
      medo2 < 243    to the right, agree=0.820, adj=0.214, (0 split)
      agven < 129    to the left,  agree=0.803, adj=0.143, (0 split)
      lowo2 < 1928   to the left,  agree=0.787, adj=0.071, (0 split)
      hio2  < 0.5    to the right, agree=0.787, adj=0.071, (0 split)

Node number 3: 186 observations,    complexity param=0.03846154
  predicted class=No BPD  expected loss=0.1397849  P(node) =0.75
    class counts:    26   160
   probabilities: 0.140 0.860
  left son=6 (23 obs) right son=7 (163 obs)
  Primary splits:
      hio2  < 159.5  to the right, improve=9.500455, (0 missing)
      ventl < 223.5  to the right, improve=5.863258, (0 missing)
      intub < 229    to the right, improve=4.550538, (0 missing)
      lowo2 < 321    to the right, improve=3.948499, (0 missing)
      yob   < 68.5   to the left,  improve=2.688830, (0 missing)

Node number 4: 48 observations
  predicted class=BPD     expected loss=0.04166667  P(node) =0.1935484
    class counts:    46     2
   probabilities: 0.958 0.042

Node number 5: 14 observations
  predicted class=No BPD  expected loss=0.4285714  P(node) =0.05645161
    class counts:     6     8
   probabilities: 0.429 0.571

Node number 6: 23 observations,    complexity param=0.03846154
  predicted class=BPD     expected loss=0.4347826  P(node) =0.09274194
    class counts:    13    10
   probabilities: 0.565 0.435
  left son=12 (10 obs) right son=13 (13 obs)
  Primary splits:
      medo2 < 45     to the right, improve=1.950502, (0 missing)
      rds   splits as  LLLLRRR,    improve=1.950502, (0 missing)
      agven < 32.5   to the right, improve=1.715062, (0 missing)
      lowo2 < 4.5    to the right, improve=1.715062, (0 missing)
      yob   < 68.5   to the left,  improve=1.590062, (0 missing)
  Surrogate splits:
      agven < 37.5   to the right, agree=0.826, adj=0.6, (0 split)
      lowo2 < 17.5   to the right, agree=0.783, adj=0.5, (0 split)
      intub < 172    to the left,  agree=0.739, adj=0.4, (0 split)
      ventl < 169.5  to the left,  agree=0.739, adj=0.4, (0 split)
      yob   < 65.5   to the left,  agree=0.696, adj=0.3, (0 split)

Node number 7: 163 observations,    complexity param=0.003205128
  predicted class=No BPD  expected loss=0.0797546  P(node) =0.6572581
    class counts:    13   150
   probabilities: 0.080 0.920
  left son=14 (13 obs) right son=15 (150 obs)
  Primary splits:
      lowo2 < 527.5  to the right, improve=4.1181750, (0 missing)
      ventl < 250.5  to the right, improve=1.9012610, (0 missing)
      intub < 433.5  to the right, improve=1.7798600, (0 missing)
      medo2 < 82.5   to the right, improve=1.6898960, (0 missing)
      gest  < 352.5  to the left,  improve=0.5030691, (1 missing)
  Surrogate splits:
      intub < 390    to the right, agree=0.945, adj=0.308, (0 split)
      ventl < 288.5  to the right, agree=0.939, adj=0.231, (0 split)

Node number 12: 10 observations
  predicted class=BPD     expected loss=0.2  P(node) =0.04032258
    class counts:     8     2
   probabilities: 0.800 0.200

Node number 13: 13 observations
  predicted class=No BPD  expected loss=0.3846154  P(node) =0.05241935
    class counts:     5     8
   probabilities: 0.385 0.615

Node number 14: 13 observations
  predicted class=No BPD  expected loss=0.4615385  P(node) =0.05241935
    class counts:     6     7
   probabilities: 0.462 0.538

Node number 15: 150 observations,    complexity param=0.003205128
  predicted class=No BPD  expected loss=0.04666667  P(node) =0.6048387
    class counts:     7   143
   probabilities: 0.047 0.953
  left son=30 (41 obs) right son=31 (109 obs)
  Primary splits:
      ventl < 146    to the right, improve=1.7369110, (0 missing)
      intub < 148.5  to the right, improve=1.4771010, (0 missing)
      medo2 < 158    to the right, improve=1.2132460, (0 missing)
      agven < 4.5    to the left,  improve=0.4336516, (0 missing)
      rds   splits as  RRRRRLL,    improve=0.4148485, (0 missing)
  Surrogate splits:
      intub < 146    to the right, agree=0.953, adj=0.829, (0 split)
      lowo2 < 206    to the right, agree=0.753, adj=0.098, (0 split)
      agven < 5.5    to the left,  agree=0.747, adj=0.073, (0 split)
      medo2 < 133    to the right, agree=0.747, adj=0.073, (0 split)
      hio2  < 144.5  to the right, agree=0.733, adj=0.024, (0 split)

Node number 30: 41 observations,    complexity param=0.003205128
  predicted class=No BPD  expected loss=0.1707317  P(node) =0.1653226
    class counts:     7    34
   probabilities: 0.171 0.829
  left son=60 (27 obs) right son=61 (14 obs)
  Primary splits:
      lowo2 < 4      to the right, improve=1.2393860, (0 missing)
      medo2 < 81.5   to the right, improve=1.2393860, (0 missing)
      agven < 31     to the right, improve=1.1223610, (0 missing)
      ventl < 155    to the left,  improve=1.1223610, (0 missing)
      yob   < 69.5   to the left,  improve=0.8294531, (0 missing)
  Surrogate splits:
      hio2  < 82.5   to the left,  agree=0.805, adj=0.429, (0 split)
      bwt   < 1078   to the right, agree=0.707, adj=0.143, (0 split)
      agven < 12.5   to the right, agree=0.707, adj=0.143, (0 split)
      yob   < 67.5   to the right, agree=0.683, adj=0.071, (0 split)
      gest  < 275    to the right, agree=0.683, adj=0.071, (0 split)

Node number 31: 109 observations
  predicted class=No BPD  expected loss=0  P(node) =0.4395161
    class counts:     0   109
   probabilities: 0.000 1.000

Node number 60: 27 observations,    complexity param=0.003205128
  predicted class=No BPD  expected loss=0.2592593  P(node) =0.108871
    class counts:     7    20
   probabilities: 0.259 0.741
  left son=120 (7 obs) right son=121 (20 obs)
  Primary splits:
      hio2  < 68.5   to the right, improve=1.8417990, (0 missing)
      medo2 < 76     to the right, improve=1.5282650, (0 missing)
      lowo2 < 99     to the left,  improve=1.4158250, (0 missing)
      ventl < 161.5  to the left,  improve=0.9259259, (0 missing)
      intub < 195    to the left,  improve=0.7879528, (0 missing)
  Surrogate splits:
      yob   < 68.5   to the left,  agree=0.815, adj=0.286, (0 split)
      gest  < 390    to the right, agree=0.815, adj=0.286, (0 split)
      bwt   < 2976.5 to the right, agree=0.815, adj=0.286, (0 split)
      ventl < 150    to the left,  agree=0.815, adj=0.286, (0 split)
      medo2 < 170.5  to the right, agree=0.815, adj=0.286, (0 split)

Node number 61: 14 observations
  predicted class=No BPD  expected loss=0  P(node) =0.05645161
    class counts:     0    14
   probabilities: 0.000 1.000

Node number 120: 7 observations
  predicted class=BPD     expected loss=0.4285714  P(node) =0.02822581
    class counts:     4     3
   probabilities: 0.571 0.429

Node number 121: 20 observations
  predicted class=No BPD  expected loss=0.15  P(node) =0.08064516
    class counts:     3    17
   probabilities: 0.150 0.850

Display the tree.

View Solution
rpart.plot(bpd.rp)

Display the classification training errors by this tree. Print a brief description of what happens at each node

View Solution
print(bpd.rp, digits=3)
n= 248

node), split, n, loss, yval, (yprob)
      * denotes terminal node

  1) root 248 78 No BPD (0.3145 0.6855)
    2) medo2>=183 62 10 BPD (0.8387 0.1613)
      4) ventl>=220 48  2 BPD (0.9583 0.0417) *
      5) ventl< 220 14  6 No BPD (0.4286 0.5714) *
    3) medo2< 183 186 26 No BPD (0.1398 0.8602)
      6) hio2>=160 23 10 BPD (0.5652 0.4348)
       12) medo2>=45 10  2 BPD (0.8000 0.2000) *
       13) medo2< 45 13  5 No BPD (0.3846 0.6154) *
      7) hio2< 160 163 13 No BPD (0.0798 0.9202)
       14) lowo2>=528 13  6 No BPD (0.4615 0.5385) *
       15) lowo2< 528 150  7 No BPD (0.0467 0.9533)
         30) ventl>=146 41  7 No BPD (0.1707 0.8293)
           60) lowo2>=4 27  7 No BPD (0.2593 0.7407)
            120) hio2>=68.5 7  3 BPD (0.5714 0.4286) *
            121) hio2< 68.5 20  3 No BPD (0.1500 0.8500) *
           61) lowo2< 4 14  0 No BPD (0.0000 1.0000) *
         31) ventl< 146 109  0 No BPD (0.0000 1.0000) *

Compute estimates of the misclassification probabilities

View Solution
bpd.prob = predict(bpd.rp)
head(bpd.prob)
        BPD     No BPD
1 0.0000000 1.00000000
2 0.0000000 1.00000000
3 0.4285714 0.57142857
4 0.9583333 0.04166667
5 0.0000000 1.00000000
6 0.0000000 1.00000000

Make a table of classification results based on confusion matrix.

View Solution
conf.matrix <- table(bpdr$y, predict(bpd.rp, type="class"))

conf.matrix

         BPD No BPD
  BPD     58     20
  No BPD   7    163
View Solution
# one can also show probabilities
prop.table(conf.matrix)

                BPD     No BPD
  BPD    0.23387097 0.08064516
  No BPD 0.02822581 0.65725806
Code
conf.matrix <- table(bpdr$y, predict(bpd.rp, type="class"))

conf.matrix

         BPD No BPD
  BPD     58     20
  No BPD   7    163
